Powder coated spcc 2.0 tv bracket extension

Tv wall mount brackets Specification:

Serias number: 24

name:T0750B

materials:SPCC 2.0

funtion feclaration: left or rignt rotation 360 degrees，max distance to ceiling 1.2 m,  up or down roatation 15 degrees

max holes distance(mm): 700*400

tv size: (inches):32"-85"

load:60KG

tv distance to wall:600-1200

unt packing siz:(mm):740*225*45

carton size(mm):750*195*245

every carton quantity(pcs): 4

unit piece packing style:K9A show box packing

every carton gross weight（kg）:20.9

unit piece net weight（kg）: 4.92

unit piece gross weight（kg）: 5.2

carton size（mm3）:=750*195*245

carton size（m3）:0.03583

20 feet container(pcs) :3126

40 feet container(pcs): 7256

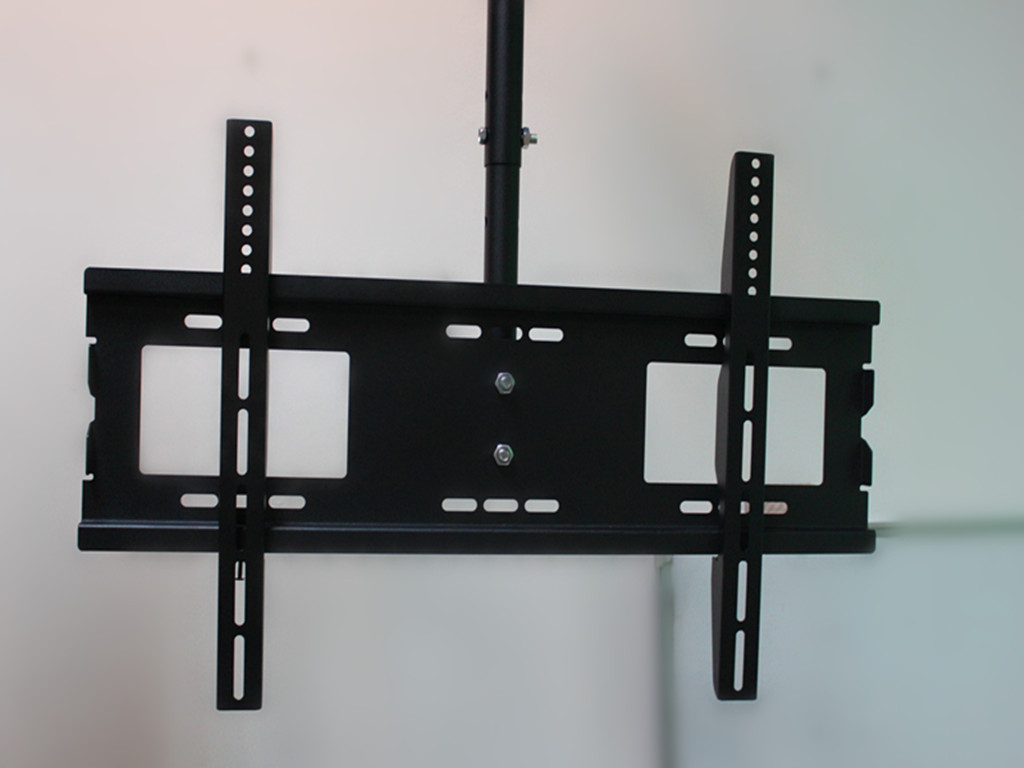

Products Pictures display:

1,  install the TV bracket tools, because the TV bracket is the weight of the entire television, we must ensure its quality, to ensure that the future use of the process will not be because of the quality of the bracket and let the television down.

2. According to the operation of TV support, determine the installation position of the support, and then measure the actual distance to drill holes on the wall.

3, drilling needs to be based on the situation of the wall, the ordinary wall directly on the wall drilling, screw ding, hanging TV can be;Gypsum board metope needs to be drilled again after fixed point, the condition installs a long board strip above the hole of hanger, raise its bearing capacity to undertake hanging TV again, install screw;Marble metope needs to install expand screw first, tighten screw hind hang TV again, operate according to instruction next
