X0770A SPCC 2.0 tv and wall mount services
Tv wall mount brackets Specification:
Serias number: 19
name:X0770A
materials:SPCC 2.0+2.3
funtion feclaration: Four directions are adjustable
max holes distance(mm): 700*400
tv size: (inches):32"-85"
load: 45KG
tv distance to wall:140-550
unt packing siz:(mm):780*215*105
carton size(mm):790*335*235
every carton quantity(pcs): 3
unit piece packing style:K9A show box packing
every carton gross weight（kg）:24.7
unit piece net weight（kg）: 7.37
unit piece gross weight（kg）: 7.92
carton size（mm3）:=725*380*212
carton size（m3）:0.06219
20 feet container(pcs) :1351
40 feet container(pcs): 3135

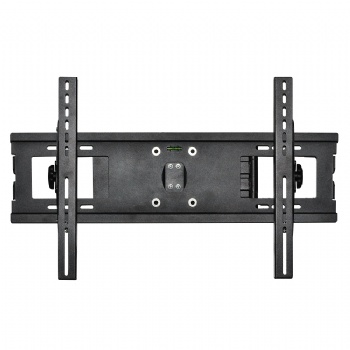

Products Pictures display:
1, install the TV bracket tools, because the TV bracket is the weight of the entire television, we must ensure its quality, to ensure that the future use of the process will not be because of the quality of the bracket and let the television down.
2. According to the operation of TV support, determine the installation position of the support, and then measure the actual distance to drill holes on the wall.
3, drilling needs to be based on the situation of the wall, the ordinary wall directly on the wall drilling, screw ding, hanging TV can be;Gypsum board metope needs to be drilled again after fixed point, the condition installs a long board strip above the hole of hanger, raise its bearing capacity to undertake hanging TV again, install screw;Marble metope needs to install expand screw first, tighten screw hind hang TV again, operate according to instruction next
